CLO Event Plugin

Overview

The CLO Event Plugin system allows you to define custom actions in response to user interactions inside CLO, such as dragging and dropping files or text into the 2D or 3D windows.

By implementing the provided event handler methods, developers can trigger CLO API commands dynamically based on drop events. For example, you can detect when a fabric file is dropped onto a pattern and automatically load and assign it.

Supported Events

Event plugins are implemented by inheriting from the CloEventPlugin class defined in CloEventPlugin.h.

Two main event handler functions are available:

• MouseDropEventOn2DView

  Triggered when the user drags and drops data onto the 2D window.

• MouseDropEventOn3DView

  Triggered when the user drags and drops data onto the 3D window.

Both handlers receive: - _scenePosX / _scenePosY: Drop location in scene coordinates. - _mimeData: A map containing MIME type keys (e.g., text/plain, text/uri-list) with their associated string data values.

Registration

Event plugins must be compiled into a .dll (Windows) or .dylib (macOS) file.

To register an event plugin:

1. Place your compiled plugin file in the appropriate directory:

   • macOS: $HOME/Documents/clo/plugins

   • Windows: C:\Users\Public\Documents\CLO\Plugins

2. Restart CLO.

When CLO starts, any plugin files in the directory above will be automatically loaded and available for use.

Example: Drag & Drop Fabric Assignment

The following example shows a plugin that assigns a dropped fabric file to the pattern located at the drop point.

bool CloEventPlugin::MouseDropEventOn2DView(
    float _scenePosX, float _scenePosY,
    const std::unordered_map<std::string, std::vector<std::string>>& _mimeData)
{
    printf("MouseDropEventOn2DView : %f(x), %f(y)\n", _scenePosX, _scenePosY);

    // Retrieve dropped text data (e.g., fabric file path)
    auto textList = GetMimeData("text/plain", _mimeData);
    if (!textList.empty())
    {
        auto patternAPI = CLOAPI::APICommand::getInstance().GetPatternAPI();
        auto fabricAPI = CLOAPI::APICommand::getInstance().GetFabricAPI();
        auto utilityAPI = CLOAPI::APICommand::getInstance().GetUtilityAPI();
        auto fabricFilePath = textList.at(0);

        utilityAPI->CreateProgressBar();
        utilityAPI->SetProgress("Load Fabric", 30);
        auto addedFabricIndex = fabricAPI->AddFabric(fabricFilePath);

        utilityAPI->SetProgress("Search Pattern", 60);
        auto selectedPatternIndex = patternAPI->GetPatternIndexFrom2DView(_scenePosX, _scenePosY);

        if (addedFabricIndex >= 0 && selectedPatternIndex >= 0)
        {
            utilityAPI->SetProgress("Assign Fabric to Pattern", 100);
            fabricAPI->AssignFabricToPattern(addedFabricIndex, selectedPatternIndex, 1);
        }
        else
        {
            utilityAPI->DeleteProgressBar(true);
            utilityAPI->DisplayMessageBox("Failed to load or assign fabric.");
        }
    }
    return true;
}

Notes

• _mimeData may contain multiple formats; use only those relevant to your use case.

• Both 2D and 3D drop handlers can be implemented in the same plugin.

• This system supports a wide variety of actions — not just fabric assignment — since any CLO API can be called from within the event handler.

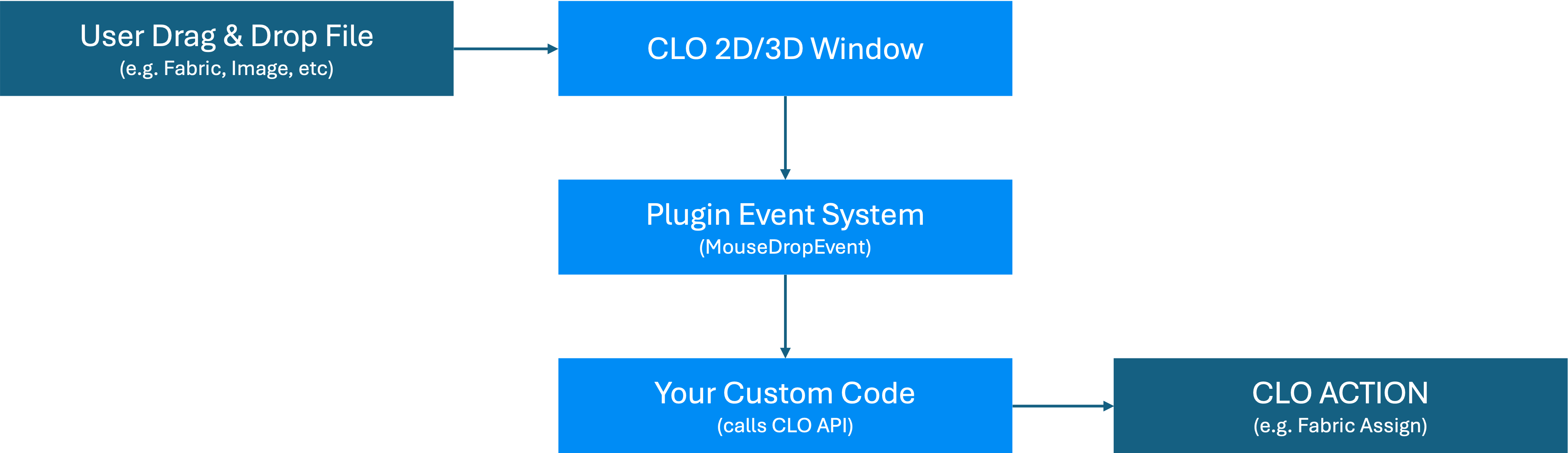

CLO Event Plugin Diagram

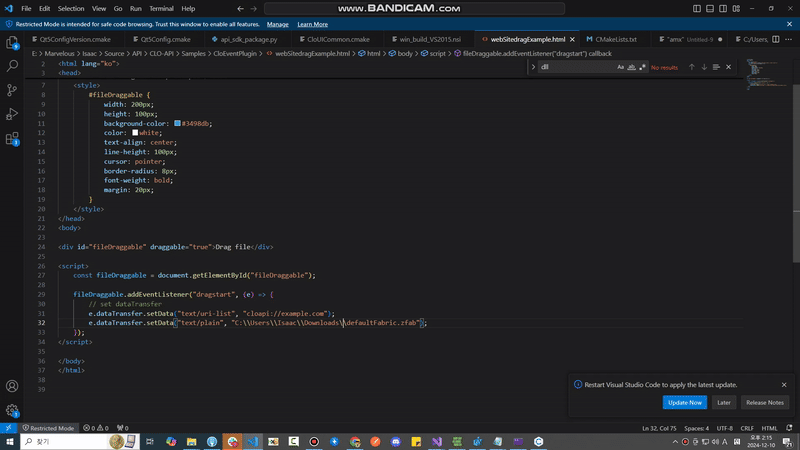

CLO Event Plugin Demo
